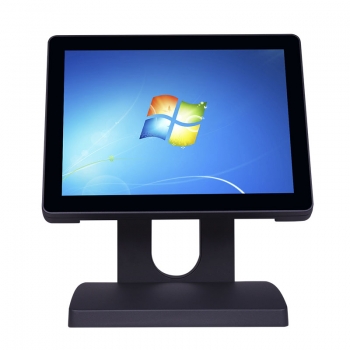

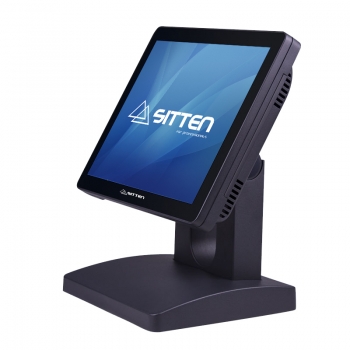

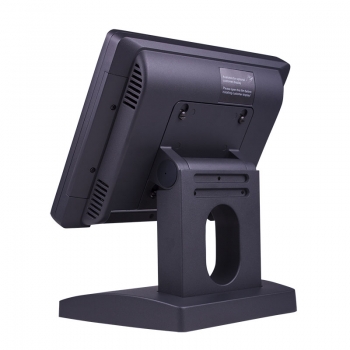

POS-T9120S
Compacts
12" Touchscreen, Atom D2550, 2GB RAM DDR3, SSD 32GB, 3x RS232, 1x 1VGA, 1xRJ45, 4xUSB Fanless Waterproof
.jpg)
BASIC INFORMATION |
|
| TYPE | Compact POS Terminal |
| Part Number (P/N) | POS1055 |
| Model | T9120S |
| Color | Black |
| Touchscreen | 12" TFT - TRUE FLAT - Waterproof |
| Operating System | Windows/Linux |
| CPU | Intel Dual Core ATOM D2550 |
| Memory | 2GB RAM DDR3 |
| Hard Disk | SATA 2.5” – 32Gb SSD - Expandable |
SPECIFICATIONS |
|
Main system |
|
| CPU | Intel Dual Core ATOM D2550 |
| Chipset | Intel NM10 1.8GHz |
| Memory | 2GB RAM DDR3 |
| Storage | SATA 2.5” – 32Gb SSD - Expandable |
| OS Compatibility | Windows/Linux |
Integrated Devices & Sensors |
|
| Graphic Card | Integrated |
| Audio Card | Integrated |
| Printer | No |
| Client Display | Optional |
| Magnetic Card Reader | Opcional |
Comunications |
|
| Network card | 10/100/1000Mbps |
| WiFi | No (Optional) |
Plug-in and Connections |
|
| Graphics | 1 x VGA |
| USB | 4 x USB |
| Network | 1 x RJ45 |
| Serial | 3 x COM |
| Drawer | 1 x RJ11 |
| Audio | Audio 1x Line-out |
Screen and Graphics |
|
| Screen | 12" TFT - TRUE FLAT - Waterproof |
| Resolution | 1024 x 768 |
| Touch Screen | 5 Wire Resistive |
| Brightness | 250 cd/m² |
Other |
|
| Dimensions (WxHxD) | Terminal: 290x300x200mm | Just the base: 230x30x200mm |
| Weight | 4,7Kg |
| Power Supply | Adaptor DC12V |
| Temperature | Running: 0ºC~40ºC | Storage: -20ºC~60ºC |
| Humidity | 0~90% |
| Certifications | CE, FCC, KC |
Observation: The images are presented for the sake of the illustration. The commercialized equipement may vary according to aesthetics and technical
updates of the products.
